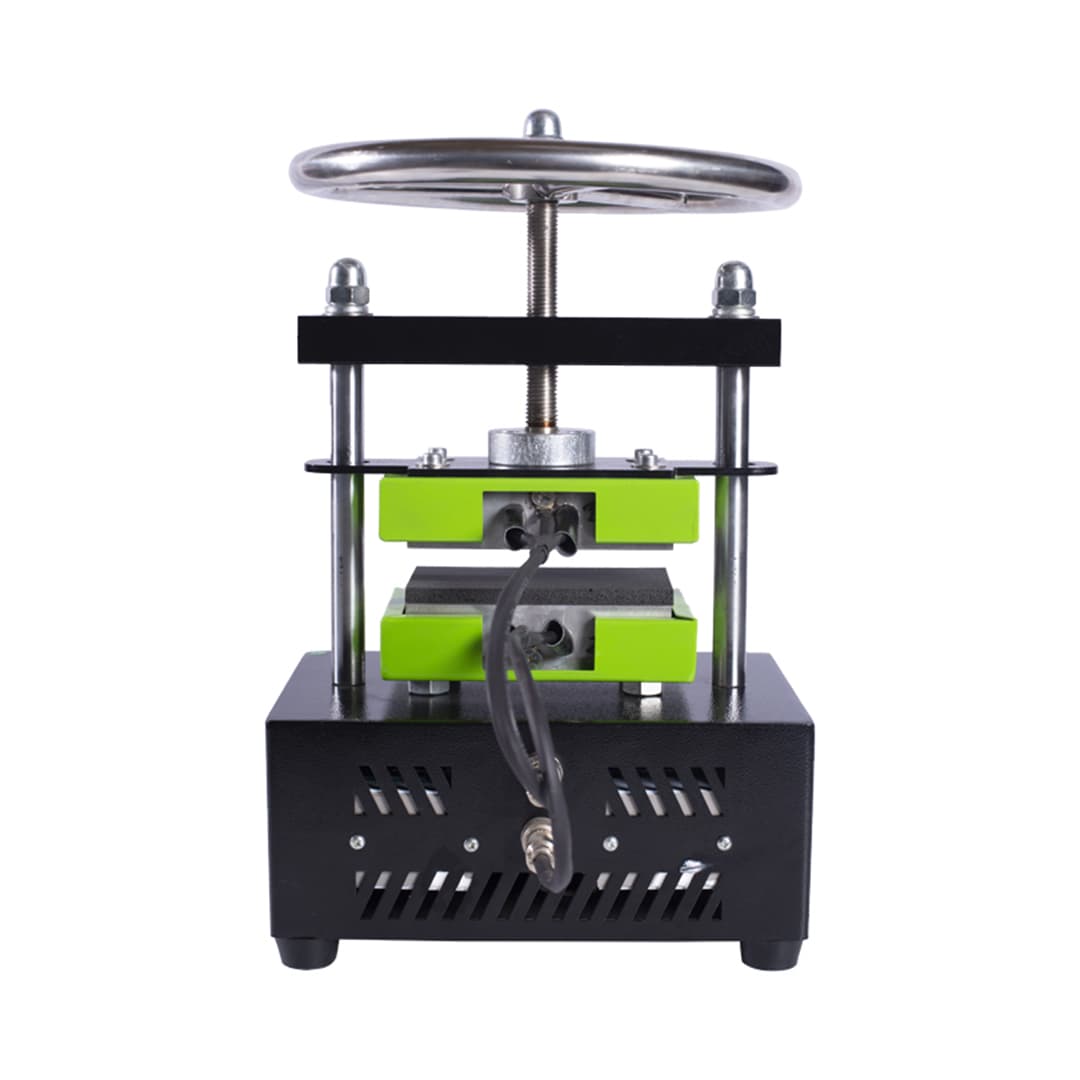

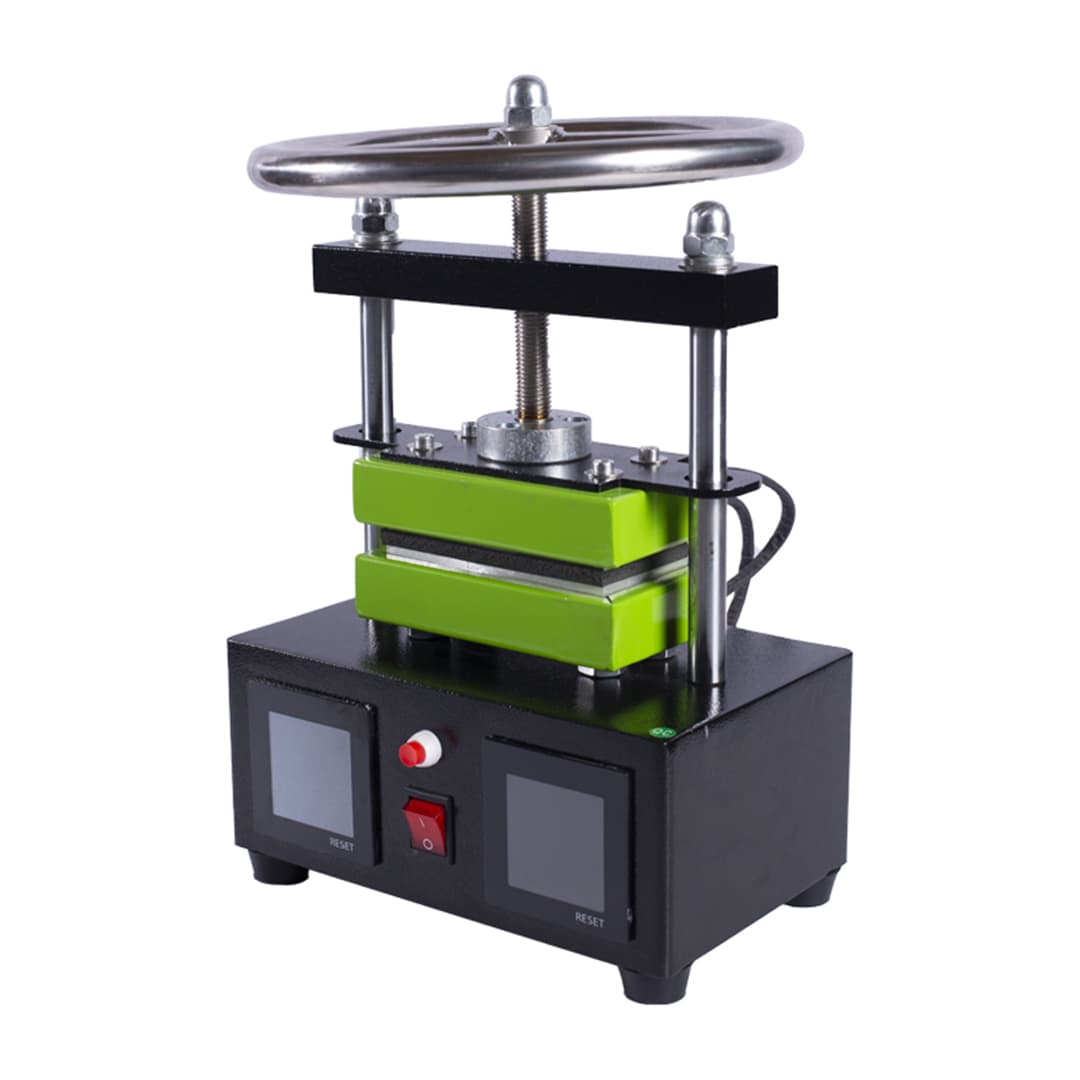

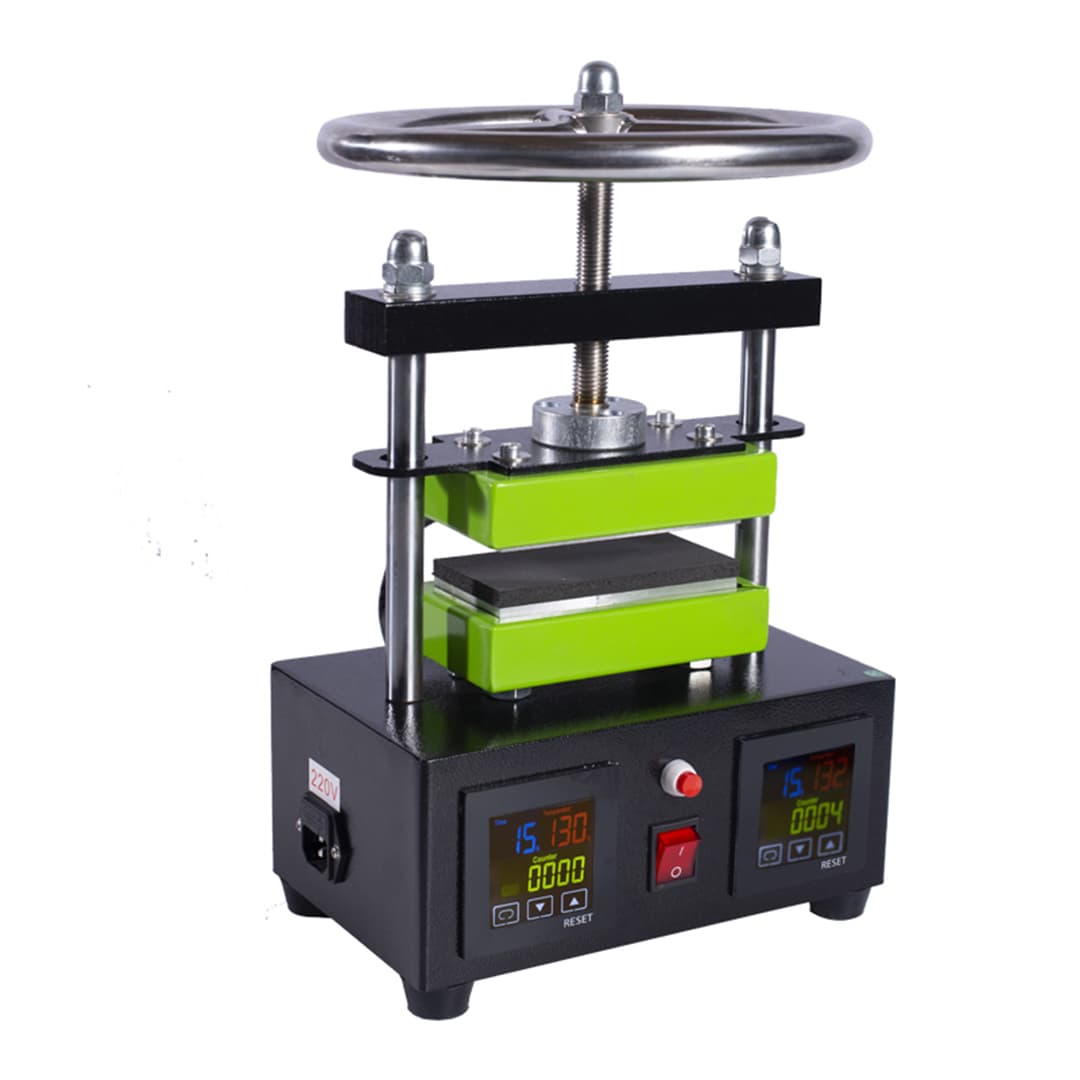

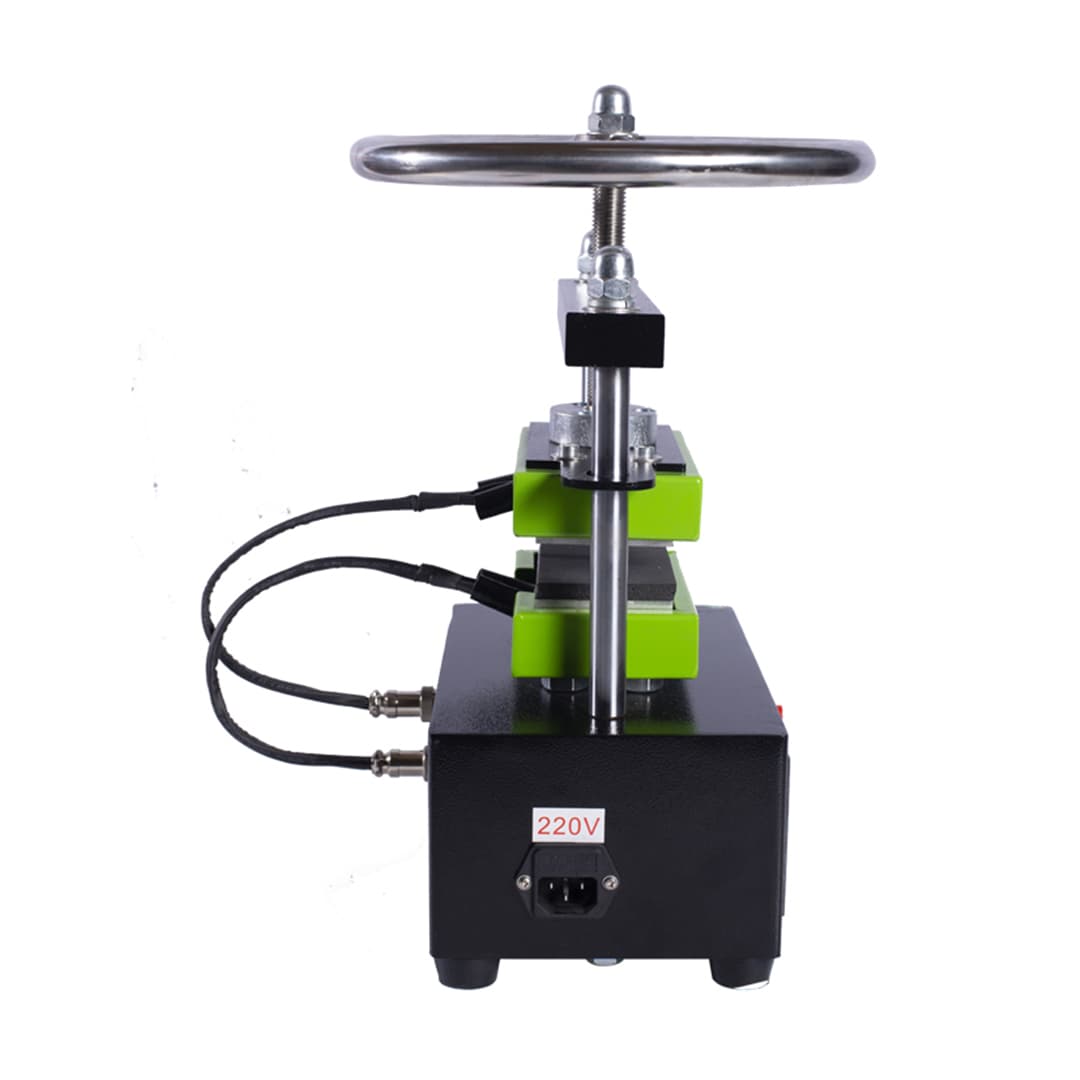

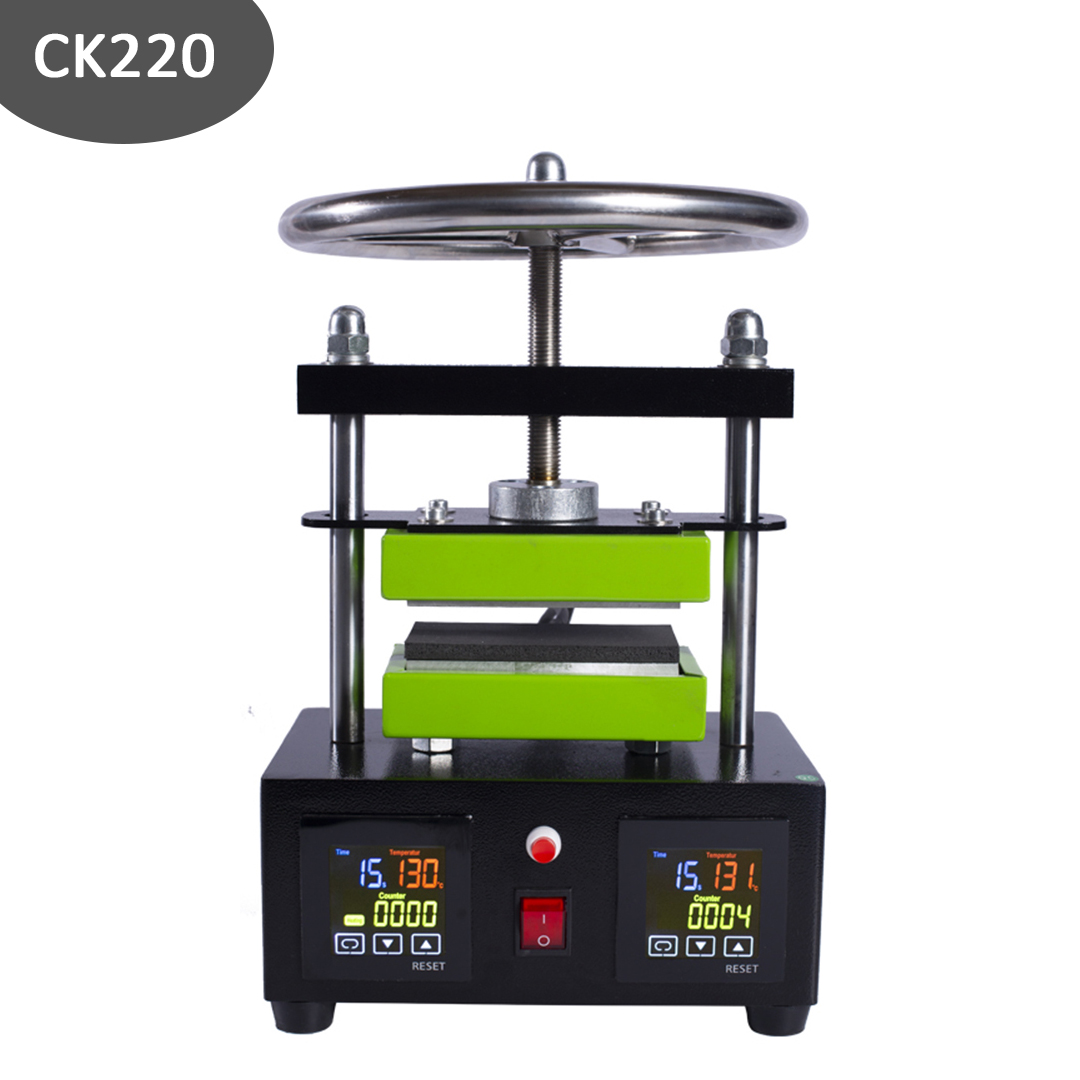

CK220 MANUAL HYDRAULIC ROSIN MACHINE
Guaranteed safe checkout:
The ck220 manual hydraulic heat press is using temperature and pressure with a certain amount of time for pressing oil, printing textiles and other materials may be used on t-shirts, mouse pads, puzzles, ceramic tiles, and other flat surfaces items by using the flex, flocking, transfer printing paper, sublimation etc. This model is manual model, easy operation, high efficiency and good return rate.
| Model number： | CK220 |
| Plate size: | 6*12cm(2.4”x4.7”) |
| Pressure range: | 0-2 Ton |
| Time range: | 0-999s |
| Temp range: | 0-250°C(32-482 F) |
| Voltage: | 110V/220V |
| Power: | 600W |
| Gross weight: | 15KG |
| Packing size: | 30*43*30cm |
Pressing Guides
1.Make sure the power plug is well connected to the wall socket, then press the power switch to turn on.
2.Set the temperature and the time you want（See the temp&time setting sheet）
3.When the temperature reaches the setting temperature, place the object on press bed.

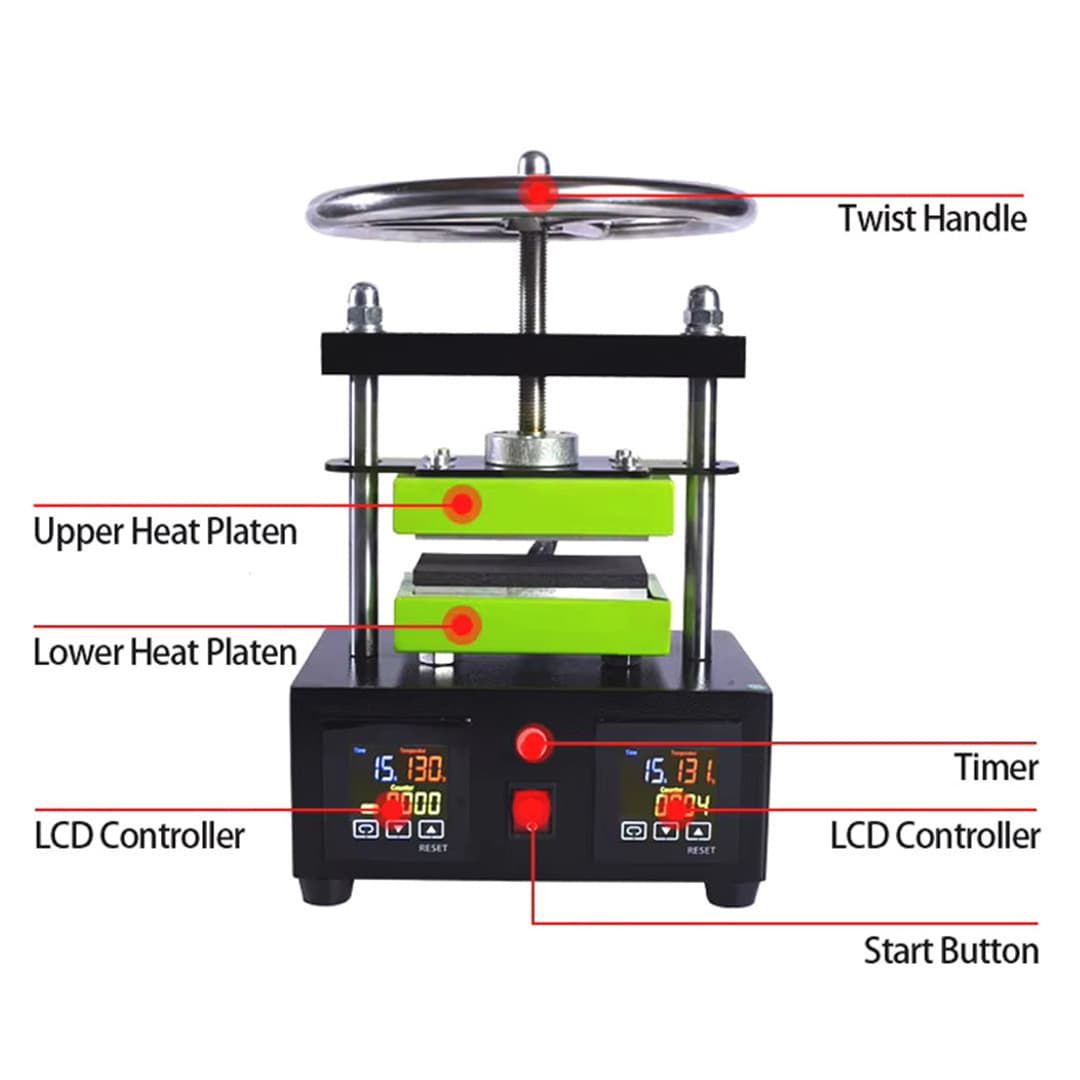

4.Rotate the twist handle to get the pressure you need.
5.The buzzer will sound when the scheduled time is up, then lift up the handle.

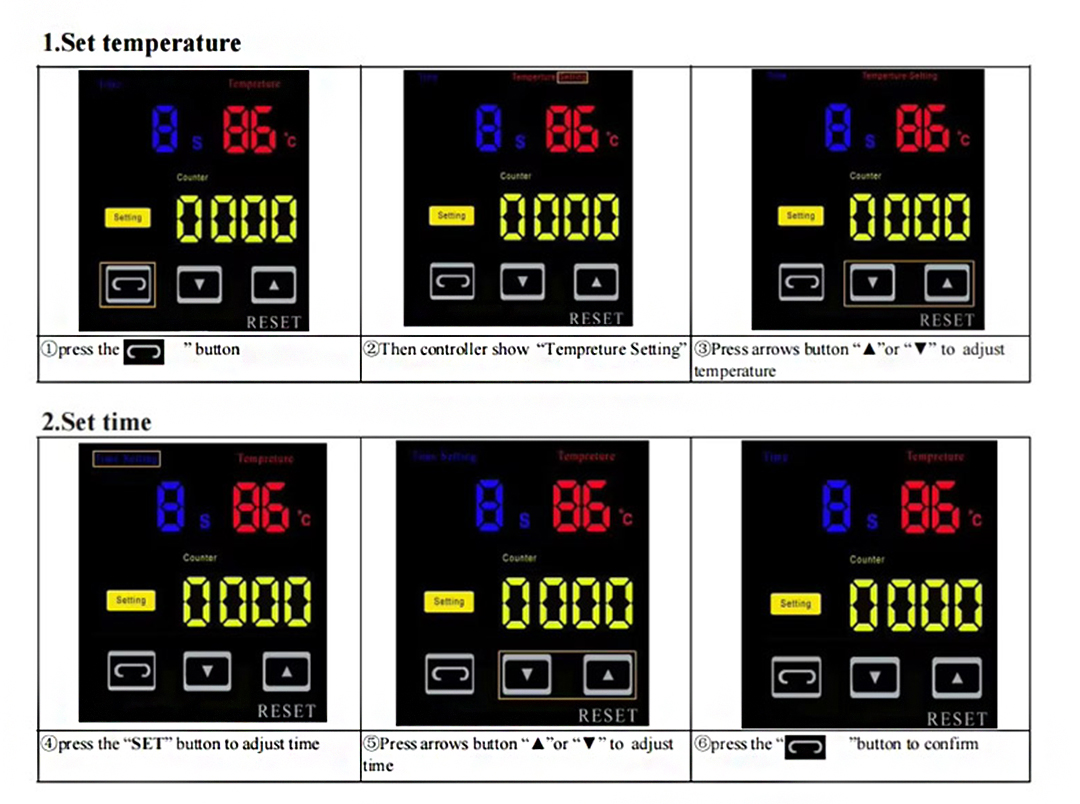

How to Set Temp&Time
1.Press on the on / off switch
2.Touch screen Set temperature
3.Touch screen Set time
4.Put objects when the machine has reached the desired temperature, press two start buttons on left and right side,machine close down, waiting time.
5.When times up, heating plates will rise up automatic, take out printing items.
6.Press green button on left side besides controller to make whole machine lower, and press green button on right side besides controller to make whole machine higher.
